SB1 – IP65 Solar Project Box

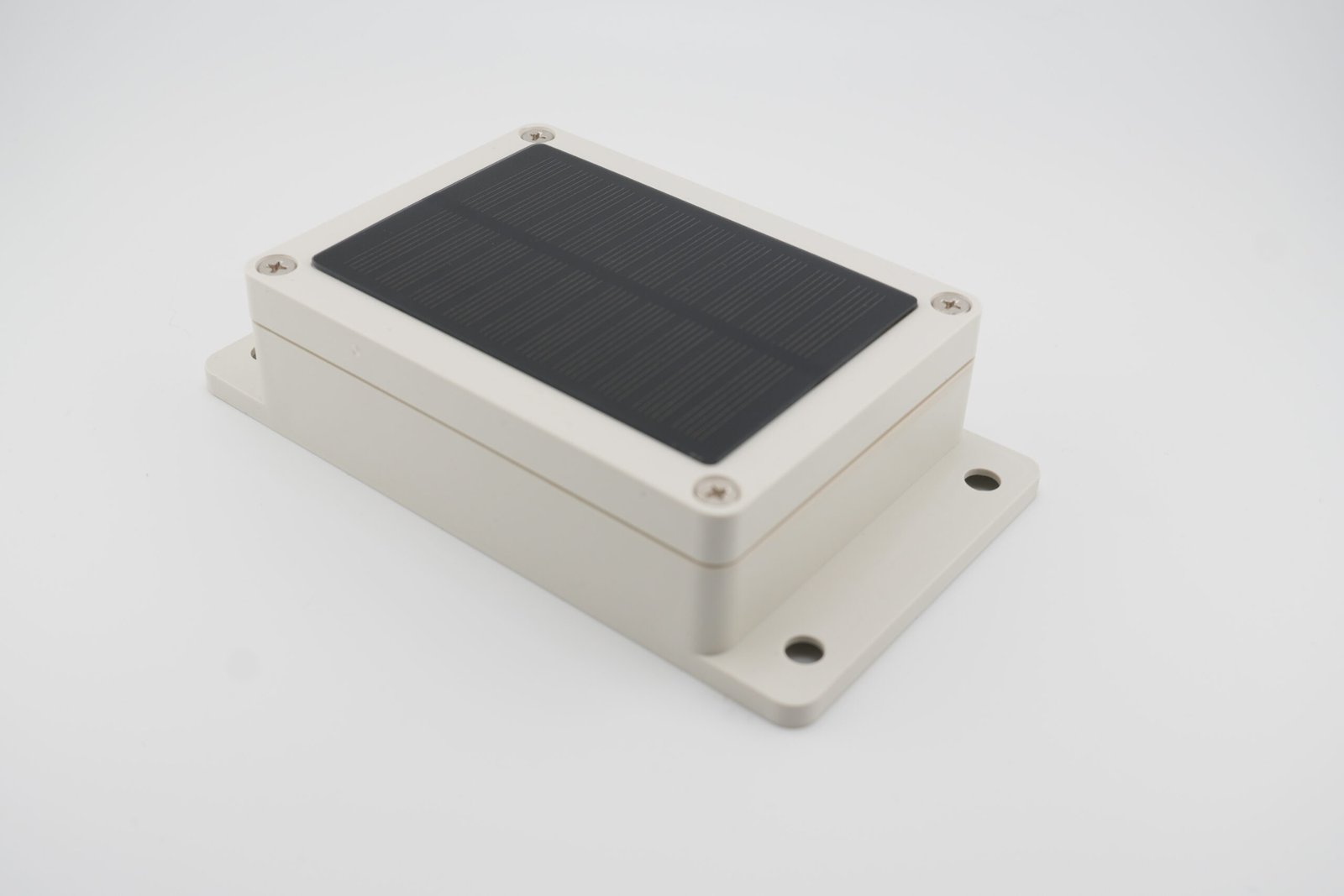

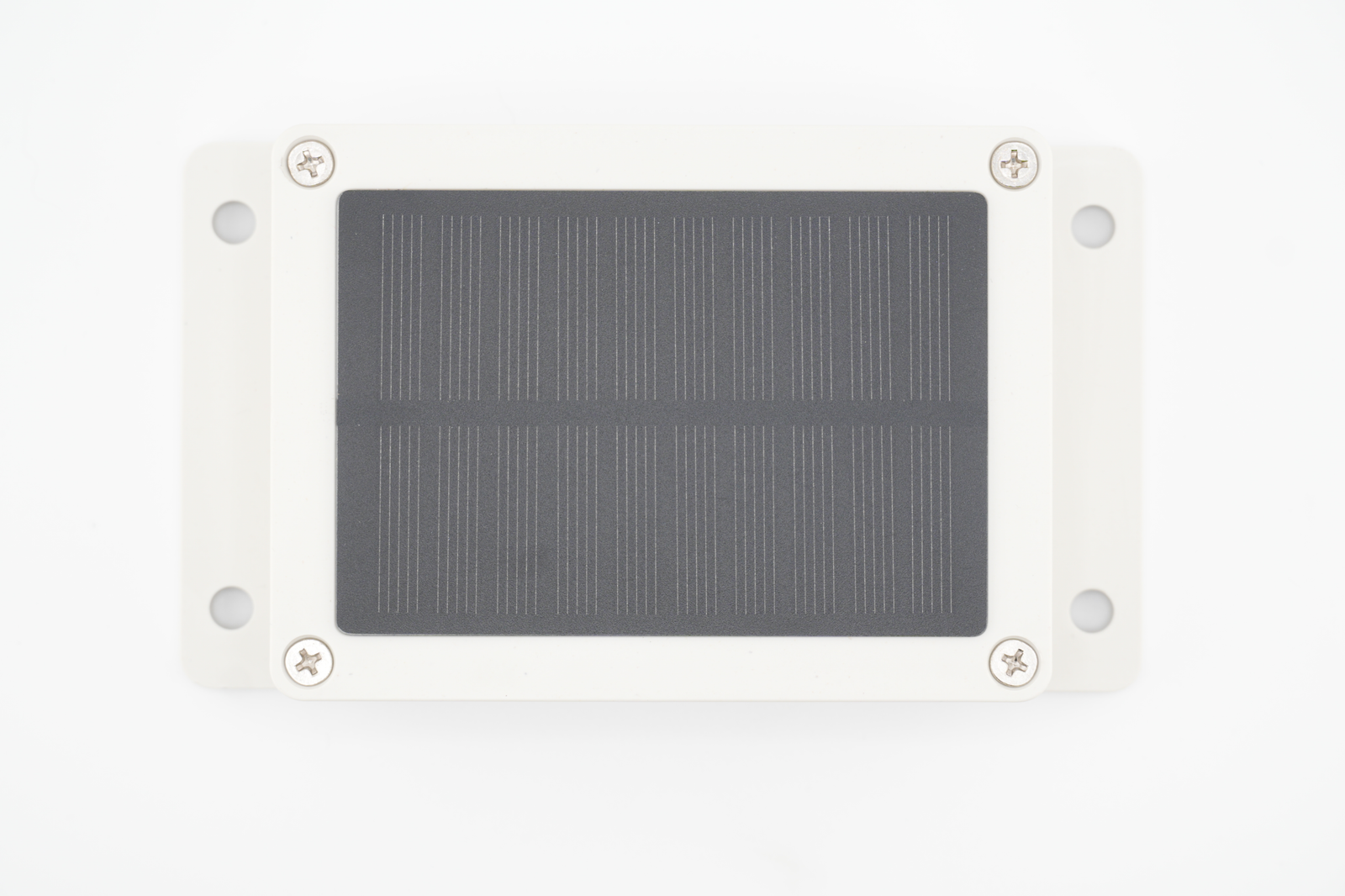

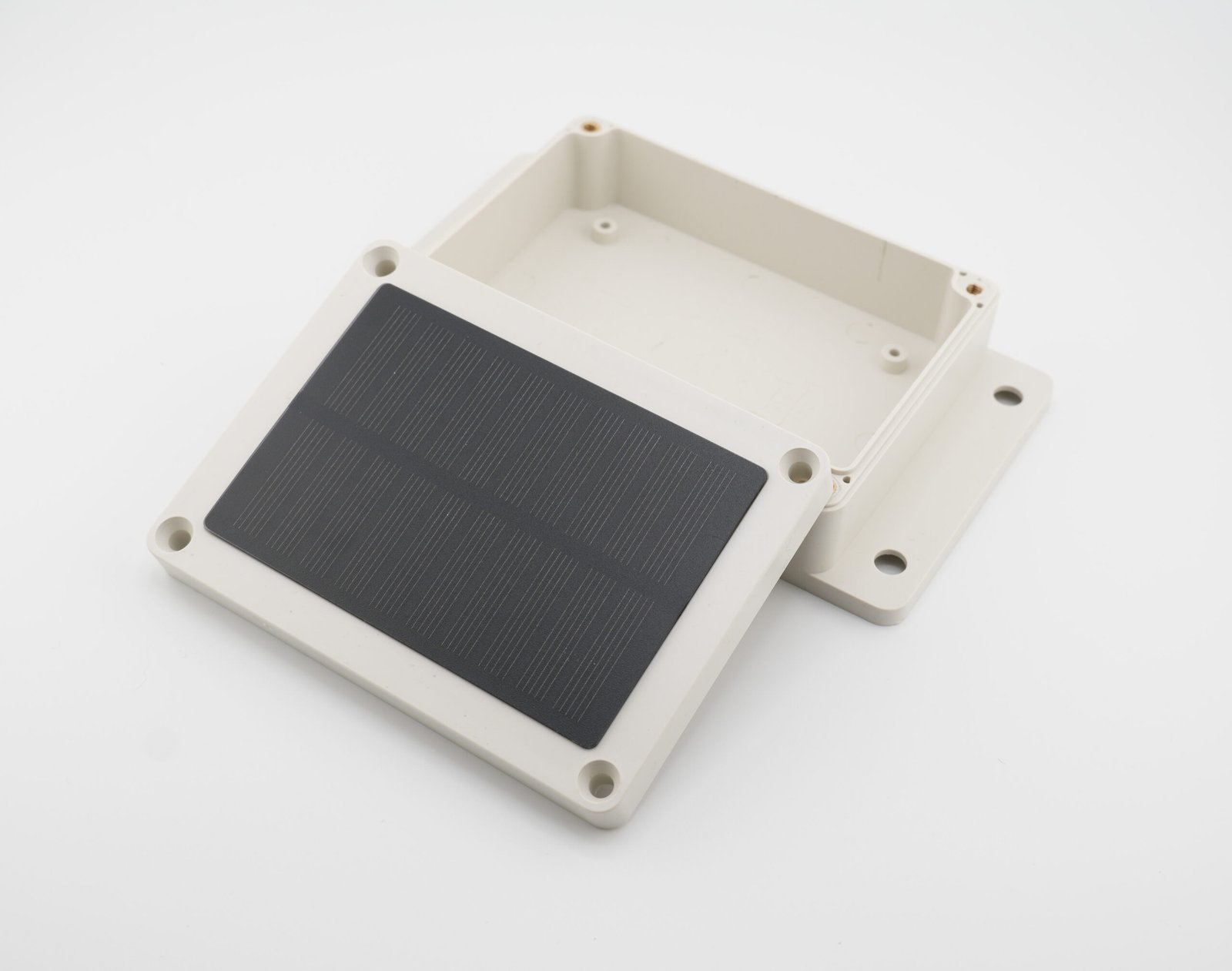

This is our custom designed and manufactured IP65-rated project box with integrated solar panel.  This is a key component of our SN1 Solar Node development board, but is now available separately.

Specifications

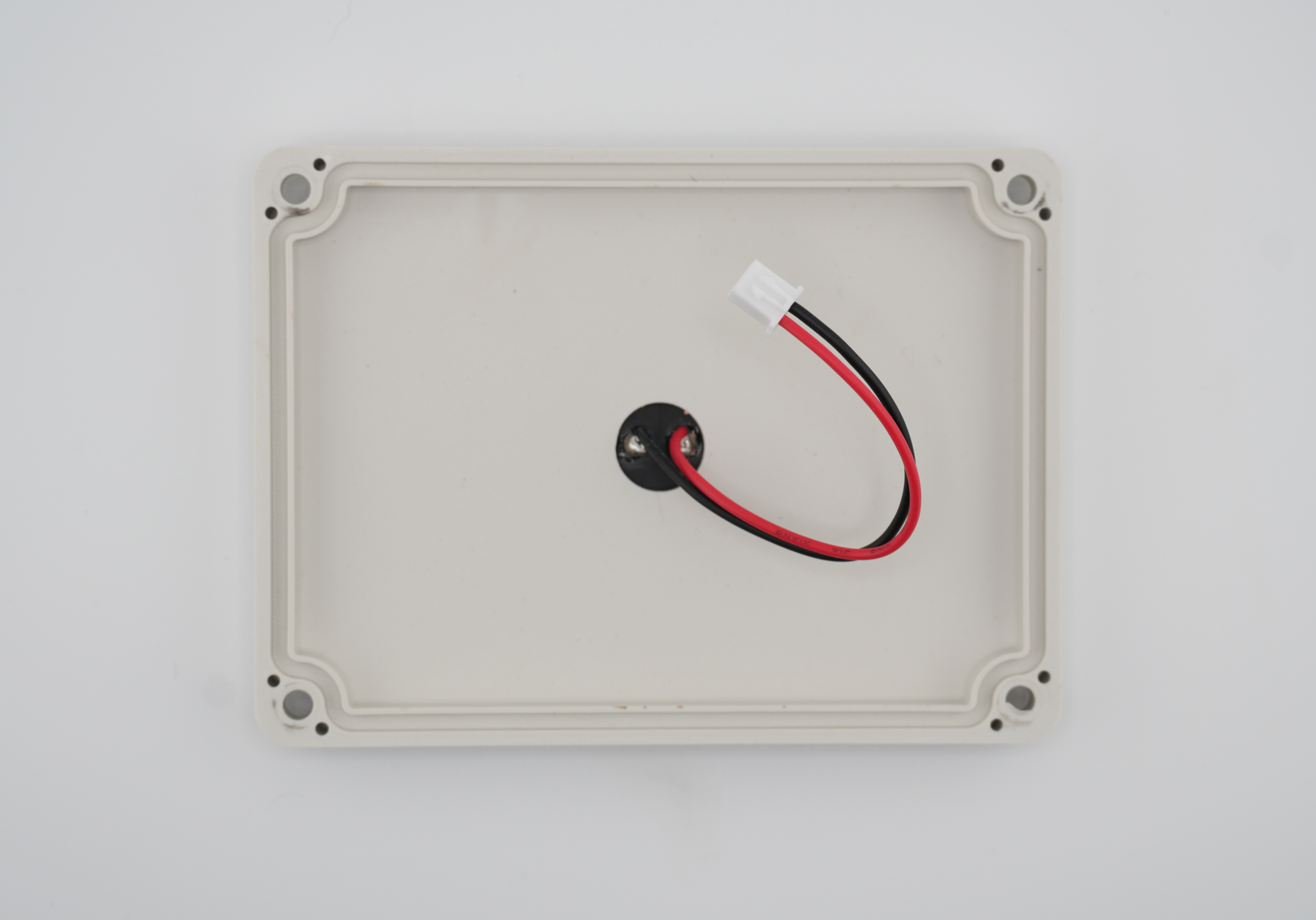

• Integrated solar panel: 5 V, 160 mA (0.8 W) in full sun, 2-pin JST XH connector
• Operating temperature: -20° to +85° C
• Dimensions:
  • Including mounting tabs: 150*85*35 mm
  • Not including mounting tabs: 115*85*35 mm

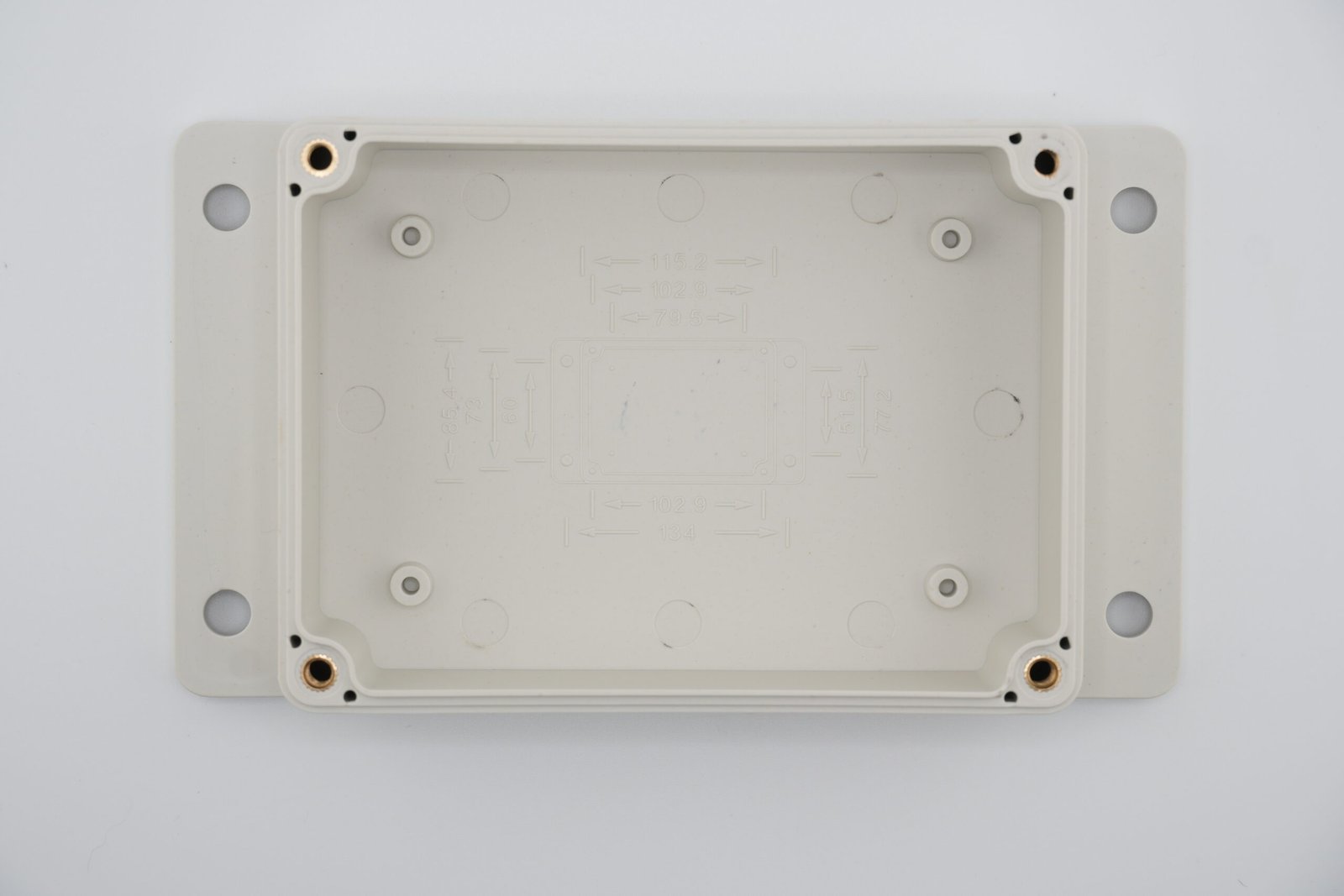

  • Internal: 103*73*23 mm
• Enclosure rating: IP65
• Hardware included: Stainless steel screws, foam gasket

Resources

• Github with KiCad PCB Template
